Cpu

• Intel® Socket Lga1700 For Intel® Core-14th & 13th Gen Processors, Intel® Core- 12th Gen, Pentium® Gold And Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0**
• * Refer To Www.asus.com For Cpu Support List.
• ** Intel® Turbo Boost Max Technology 3.0 Support Depends On The Cpu Types.

Chipset

• Intel® B760 Chipset

Memory

• 2 X Dimm Slots, Max. 64gb, Ddr4
• 5333(oc)/5066(oc)/ 5000(oc)/ 4800(oc)/ 4600(oc)/ 4400(oc)/ 4266(oc)/ 4000(oc)/ 3733(oc)/ 3600(oc)/ 3466(oc)/ 3400(oc)/ 3333(oc)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ecc, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (xmp) Memory Module
• * Supported Memory Types, Data Rate (speed), And Number Of Dram Modules Vary Depending On The Cpu And Memory Configuration, For More Information Please Refer To Cpu/memory Support List Under The Support Tab Of Product Information Site Or Visit Https://www.asus.com/support/.

Graphics

• 1 X Hdmi Port**
• * Graphics Specifications May Vary Between Cpu Types. Please Refer To Www.intel.com For Any Updates.
• ** Supports 4k@60hz As Specified In Hdmi 2.1.

Expansion Slots

• Intel® Core- Processors (14th & 13th & 12th Gen)
• 1 X Pcie 4.0 X16 Slot
• Intel® B760 Chipset
• 2 X Pcie 4.0 X1 Slots
• - To Ensure Compatibility Of The Device Installed, Please Refer To Https://www.asus.com/support/ For The List Of Supported Peripherals.

Storage

• Total Supports 2 X M.2 Slots And 4 X Sata 6gb/s Ports*
• Intel® Core- Processors (14th & 13th & 12th Gen)
• M.2_1 Slot (key M), Type 2242/2260/2280 (supports Pcie 4.0 X4 Mode)
• Intel® B760 Chipset
• M.2_2 Slot (key M), Type 2242/2260/2280 (supports Pcie 4.0 X4 Mode)
• 4 X Sata 6gb/s Ports
• * Intel® Rapid Storage Technology Supports Sata Raid 0/1/5/10.

Ethernet

• 1 X Realtek 2.5gb Ethernet

Usb

• Rear Usb (total 8 Ports)
• 4 X Usb 5gbps Ports (4 X Type-a)
• 4 X Usb 2.0 Ports (4 X Type-a)*
• Front Usb (total 6 Ports)
• 1 X Usb 5gbps Header Supports 2 Additional Usb 5gbps Ports
• 2 X Usb 2.0 Headers Support 4 Additional Usb 2.0 Ports
• * Usb_e1 Port, Usb_e2 Port, Usb_e3 Port And Usb_e4 Port Share The Bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio Codec*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports Up To 24-bit/192 Khz Playback
• Audio Features
• - Audio Shielding
• - Premium Audio Capacitors
• - Dedicated Audio Pcb Layers
• * A Chassis With An Hd Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.

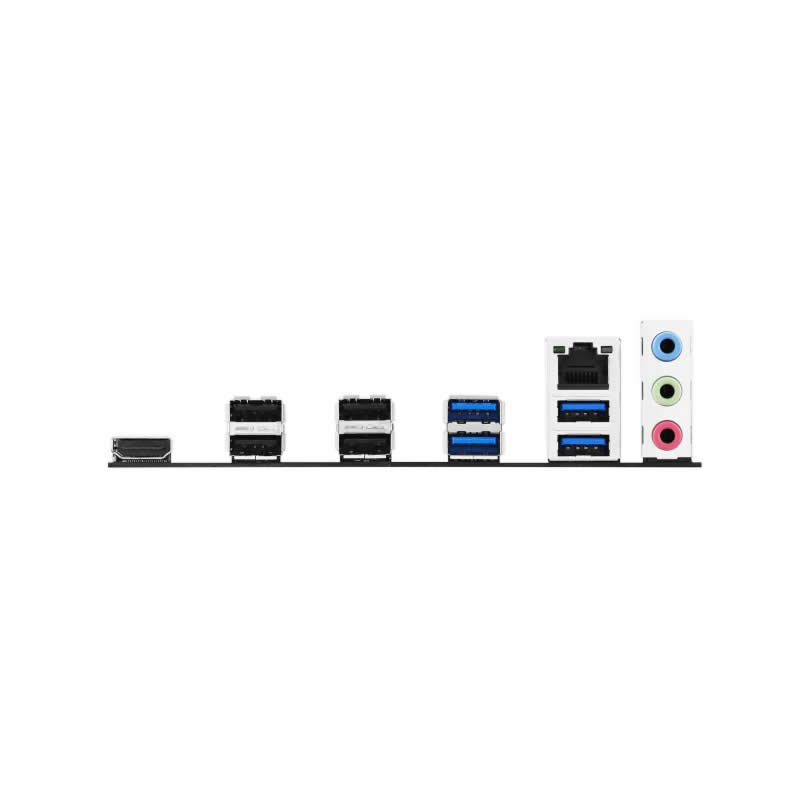

Back Panel I/o Ports

• 4 X Usb 5gbps Ports (4 X Type-a)
• 4 X Usb 2.0 Ports (4 X Type-a)
• 1 X Hdmitm Port
• 1 X Realtek 2.5gb Ethernet Port
• 3 X Audio Jacks

Internal I/o Connectors

• Fan And Cooling Related
• 1 X 4-pin Cpu Fan Header
• 2 X 4-pin Chassis Fan Headers
• Power Related
• 1 X 24-pin Main Power Connector
• 1 X 8-pin +12v Power Connector
• Storage Related
• 2 X M.2 Slots (key M)
• 4 X Sata 6gb/s Ports
• Usb
• 1 X Usb 5gbps Header Supports 2 Additional Usb 5gbps Ports
• 2 X Usb 2.0 Headers Support 4 Additional Usb 2.0 Ports
• Miscellaneous
• 3 X Addressable Gen 2 Headers
• 1 X Clear Cmos Header
• 1 X Com Port Header
• 1 X Front Panel Audio Header (f_audio)
• 1 X S/pdif Out Header
• 1 X Speaker Header
• 1 X Spi Tpm Header (14-1pin)
• 1 X 10-1 Pin System Panel Header

Bios

• 128 Mb Flash Rom, Uefi Ami Bios

Manageability

• Wol By Pme, Pxe

Form Factor

• Micro-atx Form Factor
• 9.6 Inch X 8.3 Inch (24.4cm X 21.1cm)

Garantía

• Tres Años
