Cpu

Intel® Socket Lga1700 For 13th Gen Intel® Core- & 12th Gen Intel® Core-, Pentium® Gold And Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0**
• * Refer To Www.asus.com For Cpu Support List.
• ** Intel® Turbo Boost Max Technology 3.0 Support Depends On The Cpu Types.

Chipset

• Intel® B760 Chipset

Memoria

• 4 X Dimm, Max. 192gb, Ddr5 7200+(oc)/7000(oc)/ 6800(oc)/ 6600(oc)/ 6400(oc)/ 6200(oc)/ 6000(oc)/ 5800(oc)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ecc, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (xmp)
• Optimem Ii
• * Supported Memory Types, Data Rate (speed), And Number Of Dram Modules Vary Depending On The Cpu And Memory Configuration, For More Information Please Refer To Cpu/memory Support Under The Support Tab Or Visit Https://www.asus.com/support/.
• * Non-ecc, Un-buffered Ddr5 Memory Supports On-die Ecc Function.

Gráficos

• 1 X Displayport**
• 1 X Vga Port
• 1 X Hdmi- Port***
• * Graphics Specifications May Vary Between Cpu Types. Please Refer To Www.intel.com For Any Updates.
• ** Supports Max. 4k@60hz As Specified In Displayport 1.4.
• *** Supports 4k@60hz As Specified In Hdmi- 2.1.

Ranuras De Expansión

• Intel® 13th & 12th Gen Processors
• 1 X Pcie 5.0 X16 Slot
• Intel® B760 Chipset
• 1 X Pcie 4.0 X16 Slot (supports X4 Mode)
• 2 X Pcie 3.0 X1 Slots
• Note: To Ensure Compatibility Of The Device Installed, Please Refer To Https://www.asus.com/support/ For The List Of Supported Peripherals.

Almacenamiento

• Total Supports 3 X M.2 Slots And 4 X Sata 6gb/s Ports*
• Intel® 13th & 12th Gen Processors
• M.2_1 Slot (key M), Type 2242/2260/2280 (supports Pcie 4.0 X4 Mode)
• Intel® B760 Chipset
• M.2_2 Slot (key M), Type 2242/2260/2280/22110 (supports Pcie 4.0 X4 Mode)
• M.2_3 Slot (key M), Type 2242/2260/2280 (supports Pcie 4.0 X2 Mode)
• 4 X Sata 6gb/s Ports
• * Intel® Rapid Storage Technology Supports Sata Raid 0/1/5/10.

Ethernet

• 1 X Realtek 2.5gb Ethernet

Wireless & Bluetooth

• Vertical M.2 Slot Only (key E, Cnvi & Pcie)*
• * Wi-fi Module Is Sold Separately.

Usb

• Rear Usb (total 6 Ports)
• 1 X Usb 3.2 Gen 2x2 Port (1 X Usb Type-c®)
• 2 X Usb 3.2 Gen 2 Ports (2 X Type-a)
• 1 X Usb 3.2 Gen 1 Port (1 X Type-a)
• 2 X Usb 2.0 Ports (2 X Type-a)
• Front Usb (total 7 Ports)
• 1 X Usb 3.2 Gen 1 Connector (supports Usb Type-c®)
• 1 X Usb 3.2 Gen 1 Header Supports 2 Additional Usb 3.2 Gen 1 Ports
• 2 X Usb 2.0 Headers Support 4 Additional Usb 2.0 Ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio Codec*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports Up To 24-bit/192 Khz Playback
• Audio Features
• - Audio Shielding
• - Premium Audio Capacitors
• - Dedicated Audio Pcb Layers
• * A Chassis With An Hd Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.

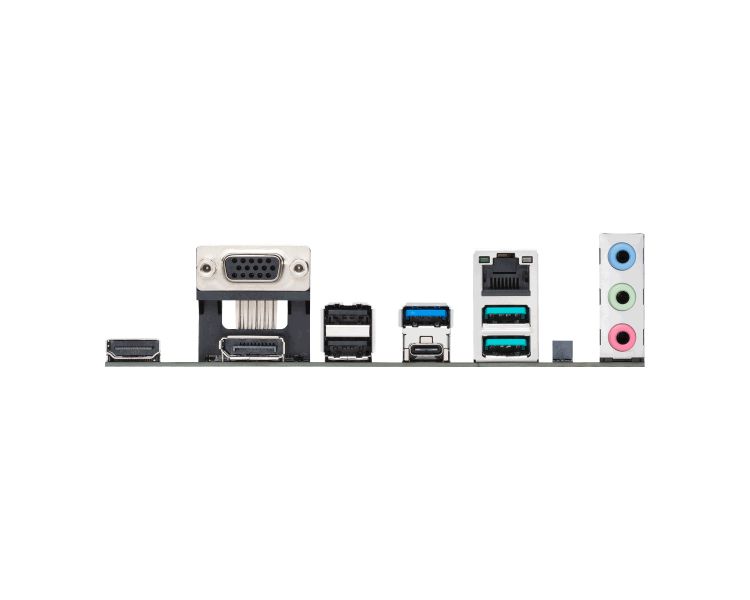

Puertos De E/s Del Panel Posterior

• 1 X Usb 3.2 Gen 2x2 Port (1 X Usb Type-c®)
• 2 X Usb 3.2 Gen 2 Ports (2 X Type-a)
• 1 X Usb 3.2 Gen 1 Port (1 X Type-a)
• 2 X Usb 2.0 Ports (2 X Type-a)
• 1 X Displayport
• 1 X Vga Port
• 1 X Hdmi- Port
• 1 X Vertical M.2 Slot (key E)
• 1 X Realtek 2.5gb Ethernet Port
• 3 X Audio Jacks

Conectores De E/s Internos

• Fan And Cooling Related
• 1 X 4-pin Cpu Fan Header
• 1 X 4-pin Aio Pump Header
• 3 X 4-pin Chassis Fan Headers
• Power Related
• 1 X 24-pin Main Power Connector
• 1 X 8-pin +12v Power Connector
• Storage Related
• 3 X M.2 Slots (key M)
• 4 X Sata 6gb/s Ports
• Usb
• 1 X Usb 3.2 Gen 1 Connector (supports Usb Type-c® )
• 1 X Usb 3.2 Gen 1 Header Supports 2 Additional Usb 3.2 Gen 1 Ports
• 2 X Usb 2.0 Headers Support 4 Additional Usb 2.0 Ports
• Miscellaneous
• 3 X Addressable Gen 2 Headers
• 1 X Aura Rgb Header
• 1 X Clear Cmos Header
• 1 X Com Port Header
• 1 X Front Panel Audio Header (aafp)
• 1 X S/pdif Out Header
• 1 X Spi Tpm Header (14-1pin)
• 1 X 20-3 Pin System Panel Header With Chassis Intrude Function
• 1 X Thunderbolt- (usb4®) Header

Bios

• 128 Mb Flash Rom, Uefi Ami Bios

Manejabilidad

• Wol By Pme, Pxe

Factor De Forma

• Atx Form Factor
• 12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )

Garantía

• Tres Años
