Procesador

• Amd Socket Am4, Support For: Amd Ryzen- 5000 Series/ Ryzen- 5000 G-series/ Ryzen- 4000 G-series / Ryzen- 3000 Series Processors And Ryzen- 3000 G-series Processors
• (por Favor, Acuda A -lista De Soporte De Cpu- Para Más Información.) -> Aquí

Chipset

• Amd B550

Memoria

• 4 X Ddr4 Dimm Sockets Supporting Up To 128 Gb (32 Gb Single Dimm Capacity) Of System Memory
• Support For Ddr4 4733(o.c.) / 4600(o.c.) / 4400(o.c.) / 4266(o.c.) / 4133(o.c.) / 4000(o.c.) / 3866(o.c.) / 3733(o.c.) / 3600(o.c.) / 3466(o.c) / 3400(o.c.) / 3200 / 2933 / 2667 / 2400 / 2133 Mt/s Memory Modules
• Dual Channel Memory Architecture
• Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules*
• * Ecc Memory (ecc Mode) Support Varies By Cpu
• Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
• Support For Extreme Memory Profile (xmp) Memory Modules
• (por Favor Diríjase A La -lista De Memorias Soportadas- Para Más Información.)

Gráfica Integrada

• Integrated Graphics Processor:
• 1 X Dvi-d Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz
• * The Dvi-d Port Does Not Support D-sub Connection By Adapter.
• 1 X Displayport, Supporting A Maximum Resolution Of 5120x2880@60 Hz
• * Support For Displayport 1.4 Version, Hdcp 2.3, And Hdr.
• 1 X Hdmi Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
• * Support For Hdmi 2.1 Version, Hdcp 2.3, And Hdr.
• Support For Up To 3 Displays At The Same Time
• Maximum Shared Memory Of 16 Gb

Audio

• Realtek® Alc1220-vb Codec
• Audio De Alta Definición
• 2/4/5.1/7.1-channel
• * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-channel Audio, Access The Audio Software For Audio Settings.

Lan

• Realtek® Gbe Lan Chip (1000 Mbit/100 Mbit/ 10mbps)

Zócalos De Expansión

• 1 X Pci Express X16 Slot (pciex16), Integrated In The Cpu:
• Amd Ryzen- 5000 Series And Ryzen- 3000 Series Processors Support Pcie 4.0 X16 Mode
• Amd Ryzen- Ryzen- 5000 G-series And Ryzen- 4000 G-series Processors Support Pcie 3.0 X16 Mode
• * For Optimum Performance, If Only One Pci Express Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
• 1 X Pci Express X1 Slot (pciex1), Integrated In The Chipset:
• Supporting Pcie 3.0 X1 Mode
• 1 X Pci Express X16 Slot (pciex14), Integrated In The Chipset:
• Supporting Pcie 3.0 X1 Mode

Interfaz De Almacenamiento

• 1 X M.2 Connector (m2a_cpu), Integrated In The Cpu, Supporting Socket 3, M Key, Type 2280/22110 Ssds:
• Amd Ryzen- 5000 Series And Ryzen- 3000 Series Processors Support Sata And Pcie 4.0 X4/x2 Ssds
• Amd Ryzen- Ryzen- 5000 G-series And Ryzen- 4000 G-series Processors Support Sata And Pcie 3.0 X4/x2 Ssds
• 1 X M.2 Connector (m2b_sb), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2280 Ssds:
• Supporting Sata And Pcie 3.0 X2 Ssds
• 4 X Sata 6gb/s Connectors, Integrated In The Chipset:
• Support For Raid 0, Raid 1, And Raid 10

Usb

• Cpu:
• 4 X Usb 3.2 Gen 1 Ports On The Back Panel
• Chipset:
• 2 X Usb 3.2 Gen 1 Ports Available Through The Internal Usb Header
• 6 X Usb 2.0/1.1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)

Conectores Internos E/s1 X 24-pin Atx Main Power Connector

• 1 X 8-pin Atx 12v Power Connector
• 1 X Cpu Fan Header
• 2 X System Fan Headers
• 2 X Addressable Led Strip Headers
• 2 X Rgb Led Strip Headers
• 1 X Cpu Cooler Led Strip/rgb Led Strip Header
• 2 X M.2 Socket 3 Connectors
• 4 X Sata 6gb/s Connectors
• 1 X Front Panel Header
• 1 X Front Panel Audio Header
• 1 X Usb 3.2 Gen 1 Header
• 1 X Usb 2.0/1.1 Header
• 1 X Trusted Platform Module (tpm) Header (2x6 Pin, For The Gc-tpm2.0_s Module Only)
• 1 X Serial Port Header
• 1 X Clear Cmos Jumper
• 1 X Q-flash Plus Button

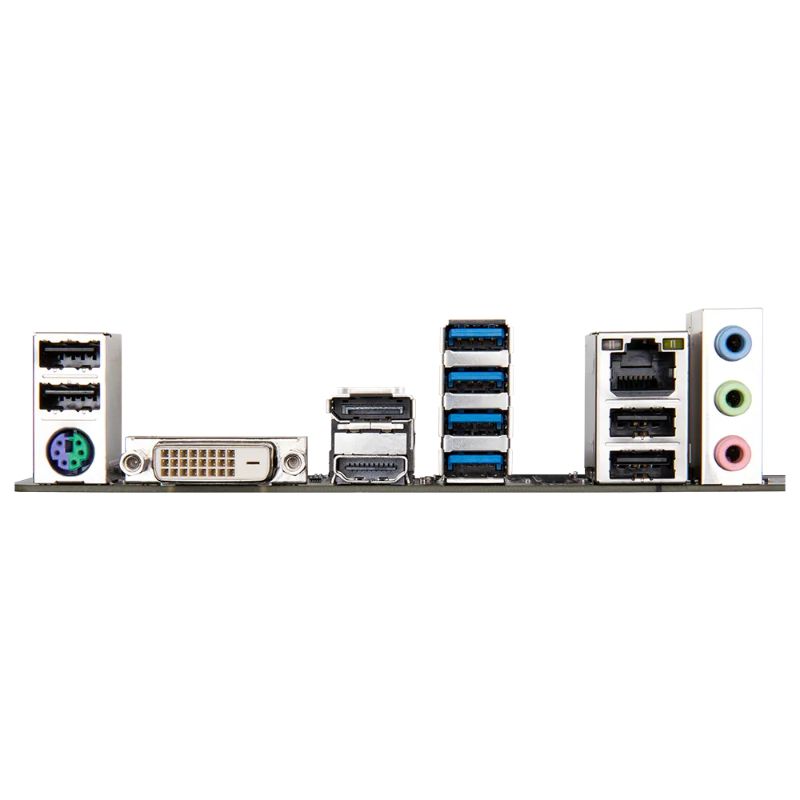

Panel E/s Trasero

• 1 X Ps/2 Keyboard/mouse Port
• 1 X Dvi-d Port
• 1 X Displayport
• 1 X Hdmi Port
• 4 X Usb 3.2 Gen 1 Ports
• 4 X Usb 2.0/1.1 Ports
• 1 X Rj-45 Port
• 3 X Audio Jacks

Controlador E/s

• Chip Controlador E/s Ite®

Bios

• 1 X 128 Mbit Flash
• Licencia Para Uso De Uefi Bios De Ami
• Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

Formato

• Factor De Forma Micro Atx: 24,4cm X 24,4cm

Garantía

• Tres Años
